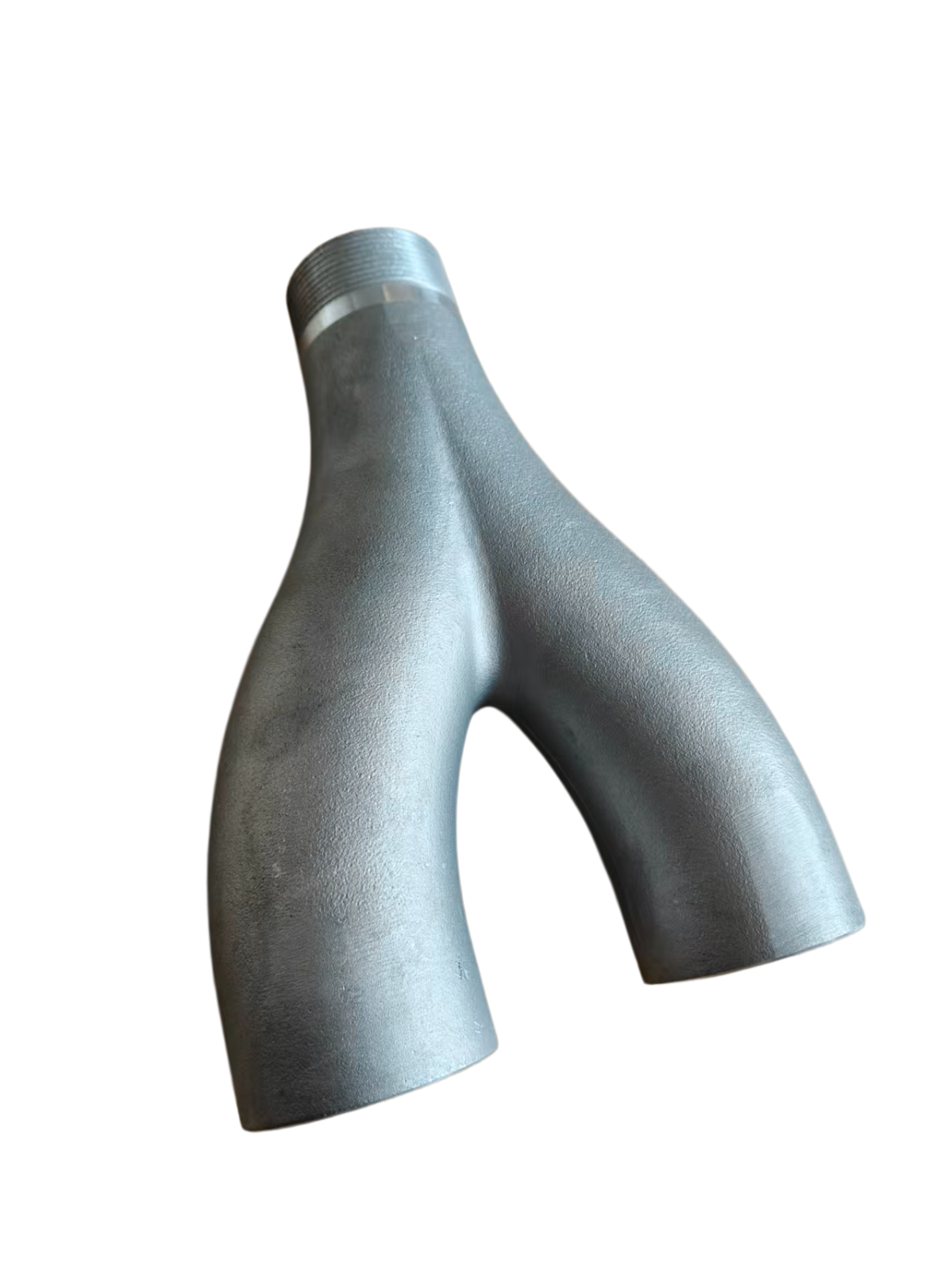

An aluminum Y-boom for a blowing system, produced via permanent mold casting, is a high-density, lightweight, and durable component designed for precision and structural integrity. Utilizing steel molds, this process ensures superior surface finish, tight tolerances, and excellent repeatability, making it ideal for high-strength, complex, and high-volume structural parts.

Key Characteristics & Advantages

• Superior Material Properties: The rapid cooling within the metal mold produces a fine-grained microstructure, resulting in stronger, more durable components compared to sand casting.

• Structural Integrity: Permanent mold casting creates dense, consistent parts with minimal porosity.

• Precision and Surface Finish: The process provides tighter tolerances and smoother surface finishes, reducing the need for secondary machining.

• Optimal for Y-Boom Geometry: Ideal for producing complex, Y-shaped structures that require high strength and consistent dimensional accuracy for consistent airflow or material flow within the blowing system.

• Cost-Effectiveness: Although tooling costs are higher than sand casting, the reusability of the steel molds makes this method highly economical for medium-to-high volume production.

• Lightweighting: Replacing ferrous metals (steel/iron) with aluminum reduces the overall weight of the assembly.

Manufacturing Process

The process typically involves pouring molten aluminum into preheated steel (often H13) or cast iron molds. Gravity or low-pressure systems are used to fill the mold, reducing turbulence and entrapped gas. The mold is then cooled (sometimes with water channels) and the finished casting is removed, often followed by trimming and machining

Application: Vacuum Blowing System

Material: aluminum 356 T6

Process: Permanent casting

Surface: Sand Blasting
